Type AEiF41

Contact

Type AEiF41

Pressure

Structure

  • Optional: bellows multilayer
  • {'message': "Parameter 'text' not specified."}

Nominal size

  • Nominal size DN 15 - DN 250
  • Optional: up to DN 3000

Materials

  • Welding ends made of St 35.8
  • Optional: 1.4571, 1.4828, other materials on request
  • {'message': "Parameter 'text' not specified."}
  • {'message': "Parameter 'text' not specified."}

Welding ends

  • According to ISO pipe standard
  • Optional: Tube dimensions according to your specifications

pressure levels

  • PN 16 (BD 16 bar, BT 20°C)
  • Optional: PN 1 to PN 40

Overall length

  • Standard overall lengths according to table
  • All special lengths possible

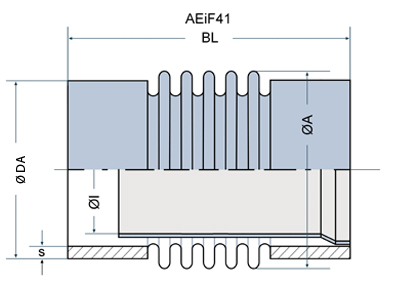

AEiF41
Note
The specified movement shots should not occur simultaneously, as this can cause the compensator to deflect.
DN BL A axial I s DA wqs
Nominal size Overall length Outer diameter movement Bellows inner diameter pipe thickness Effective cross section
in mm Ø in mm in mm Ø in mm in mm Ø in mm cm²
DN15 to DN250: both sides PN16
15 175 36 10 14 2 21.3 7
20 175 36 10 18 2.3 26.9 7
25 185 42 12.5 23.9 2.6 33.7 10
32 185 50 12.5 30.7 2.6 42.4 14.5
40 190 60 12.5 39 2.6 48.3 22
50 220 75 15 49 2.9 60.3 34
65 240 90 20 65 2.9 76.1 50
80 240 110 22.5 77 3.2 88.9 74.5
100 255 133 22.5 100 3.6 114.3 111
125 280 157 22.5 121 4 139.7 159
150 315 190 32.5 150 4.5 168.3 236
200 355 250 32.5 200 6.3 219.1 419
250 355 300 32.5 250 6.3 273 615
