Type AEA41
ContactType AEA41
Structure
- Optional: bellows multilayer
- Single-ply multiwall BaIg, outer protective jacket, welding ends on both sides
Nominal size
- Nominal size DN 15 - DN 250
- Optional: up to DN 3000
Materials
- Bellow from 1.4541
- Welding ends made of St 35.8
- Optional: 1.4571, 1.4828, other materials on request
- Carbon steel outer jacket
Welding ends
- According to ISO pipe standard
- Optional: Tube dimensions according to your specifications
pressure levels
- PN 16 (BD 16 bar, BT 20°C)
- Optional: PN 1 to PN 40
Overall length
- Standard overall lengths according to table
- All special lengths possible
Note
The specified movement shots should not occur simultaneously, as this can cause the compensator to deflect.

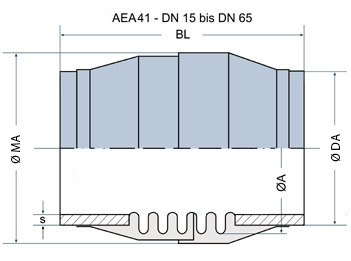

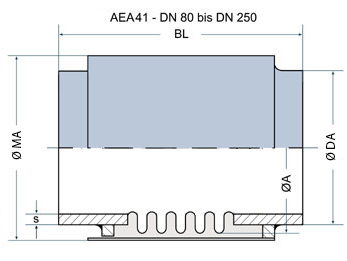

DN | BL | A | axial | s | DA | wqs | MA | |
---|---|---|---|---|---|---|---|---|
Nominal size | Overall length | Outer diameter | movement | pipe thickness | Effective cross section | Outer protective jacket | ||
in mm | Ø in mm | in mm | in mm | Ø in mm | cm² | Ø in mm | ||
DN15 to DN250: both sides PN16 | ||||||||
15 | 175 | 36 | 10 | 2 | 21.3 | 7 | 43 | |
20 | 175 | 36 | 10 | 2.3 | 26.9 | 7 | 43 | |
25 | 185 | 42 | 12.5 | 2.6 | 33.7 | 10 | 49 | |
32 | 185 | 50 | 12.5 | 2.6 | 42.4 | 14.5 | 57 | |
40 | 190 | 60 | 12.5 | 2.6 | 48.3 | 22 | 68 | |
50 | 220 | 75 | 15 | 2.9 | 60.3 | 34 | 83 | |
65 | 240 | 90 | 20 | 2.9 | 76.1 | 50 | 99 | |
80 | 240 | 110 | 22.5 | 3.2 | 88.9 | 74.5 | 120 | |
100 | 255 | 133 | 22.5 | 3.6 | 114.3 | 111 | 145 | |
125 | 280 | 157 | 22.5 | 4 | 139.7 | 159 | 170 | |
150 | 315 | 190 | 32.5 | 4.5 | 168.3 | 236 | 204 | |
200 | 355 | 250 | 32.5 | 6.3 | 219.1 | 419 | 273 | |
250 | 355 | 300 | 32.5 | 6.3 | 273 | 615 | 324 |
